PUR Hot Melt Glue Machine

Polyurethane Reactive (PUR) adhesive melting systems — from 5-gallon applicators to 55-gallon industrial drum machines with PLC nitrogen protection.

What Makes PUR Different?

PUR (Polyurethane Reactive) hot melt adhesive cures through moisture in the air, creating bonds 5–10× stronger than standard EVA hot melt. It is the preferred adhesive for edge banding, bookbinding, automotive and high-performance lamination.

All Liujiang PUR machines feature nitrogen blanketing to prevent premature curing inside the tank, precision gear or piston pumps, and closed heated hose systems.

  • 5-gallon (20L) drum to 55-gallon (200L) drum capacity
  • PLC + touch screen control standard on all models
  • Nitrogen protection system (prevents moisture curing in tank)
  • Heated hose + precision slot-die or round-bead heads
  • Stainless tank, easy-clean quick-release fittings
  • Applications: edge banding, bookbinding, filter, automotive, footwear, lamination
Request a Custom Quote
PUR 200L Drum Machine PLC Control

PUR Machine Models

From compact 5-gallon edge banding units to full 55-gallon production drum systems.

PUR 20KG Laminating Machine

PUR 20KG Hot Melt Machine — Laminating Line / Edge Cabin Filter

US$3,700–3,800 / set
Get Quote

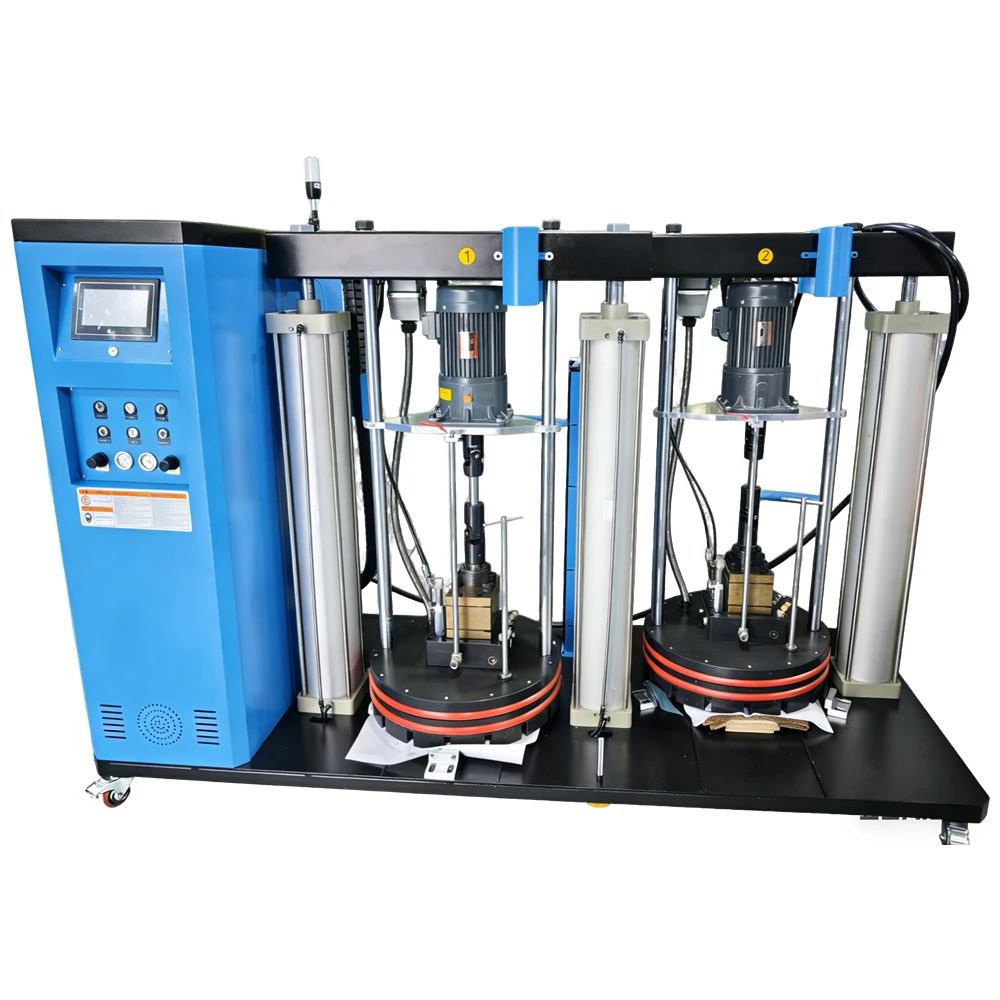

PUR 20KG Double Pressure Plate

200KG PUR Dual Drum Melter

US$18,000 / set
Get Quote
PUR 5 Gallon Edge Spray

PUR 5-Gallon Hot Melt Machine — Edge Spraying System

US$6,500–6,900 / set
Get Quote

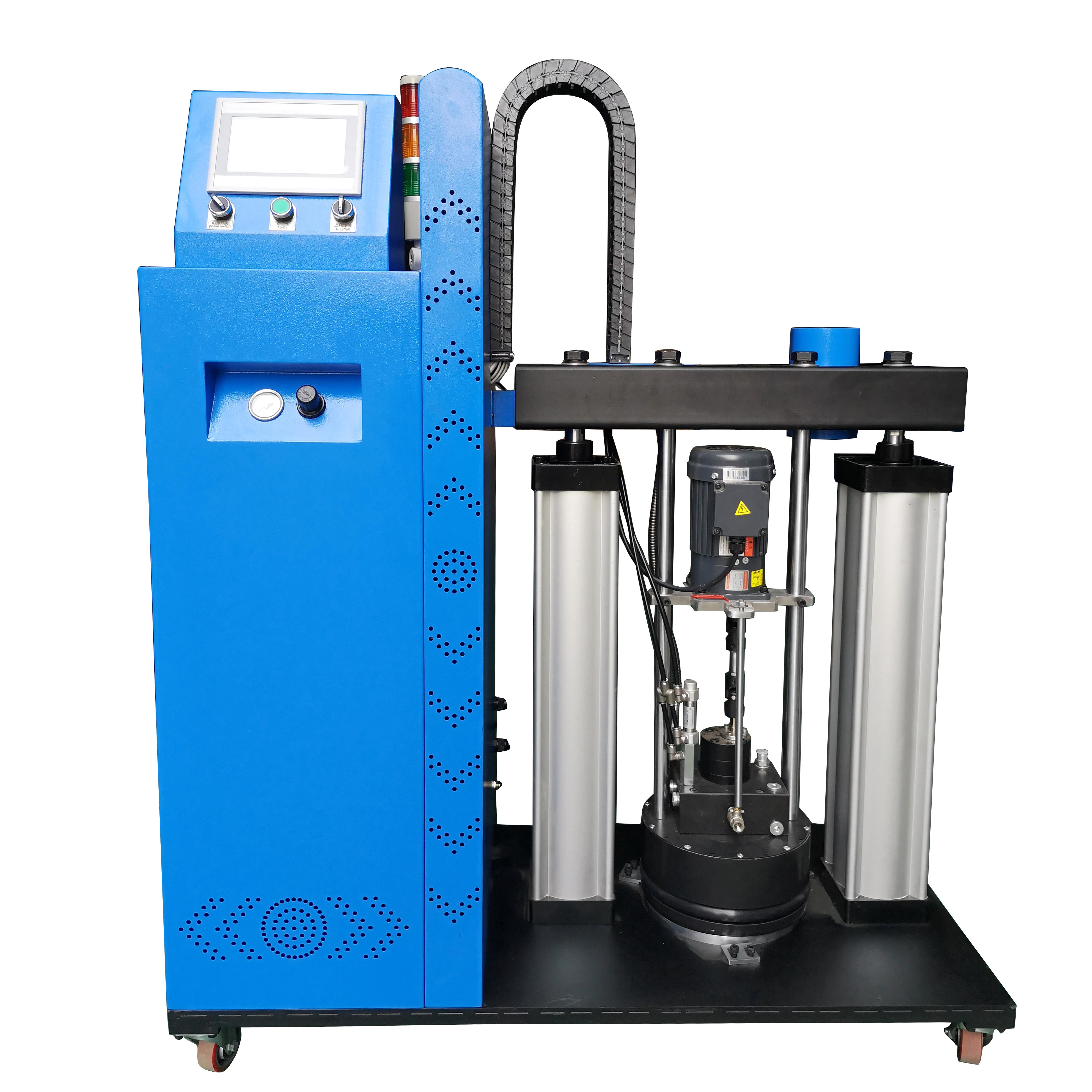

PUR 5 Gallon Automatic Spraying

PUR 5-Gallon Automatic Glue Spraying Machine

US$5,000 / set
Get Quote
PUR 55 Gallon 200L Drum Machine

PUR 55-Gallon Polyurethane Hot Melt Adhesive Dispenser (200L)

US$35,000–45,000 / set
Get Quote
PUR 200L Drum PLC System

PUR Automatic 55-Gallon Drum System — PLC Control, Polyurethane Reactive

US$35,000–45,000 / set
Get Quote
PUR Drum Auto Melter Machine

PUR Automatic Drum Hot Melt Adhesive Melter Machine

US$35,000–45,000 / set
Get Quote

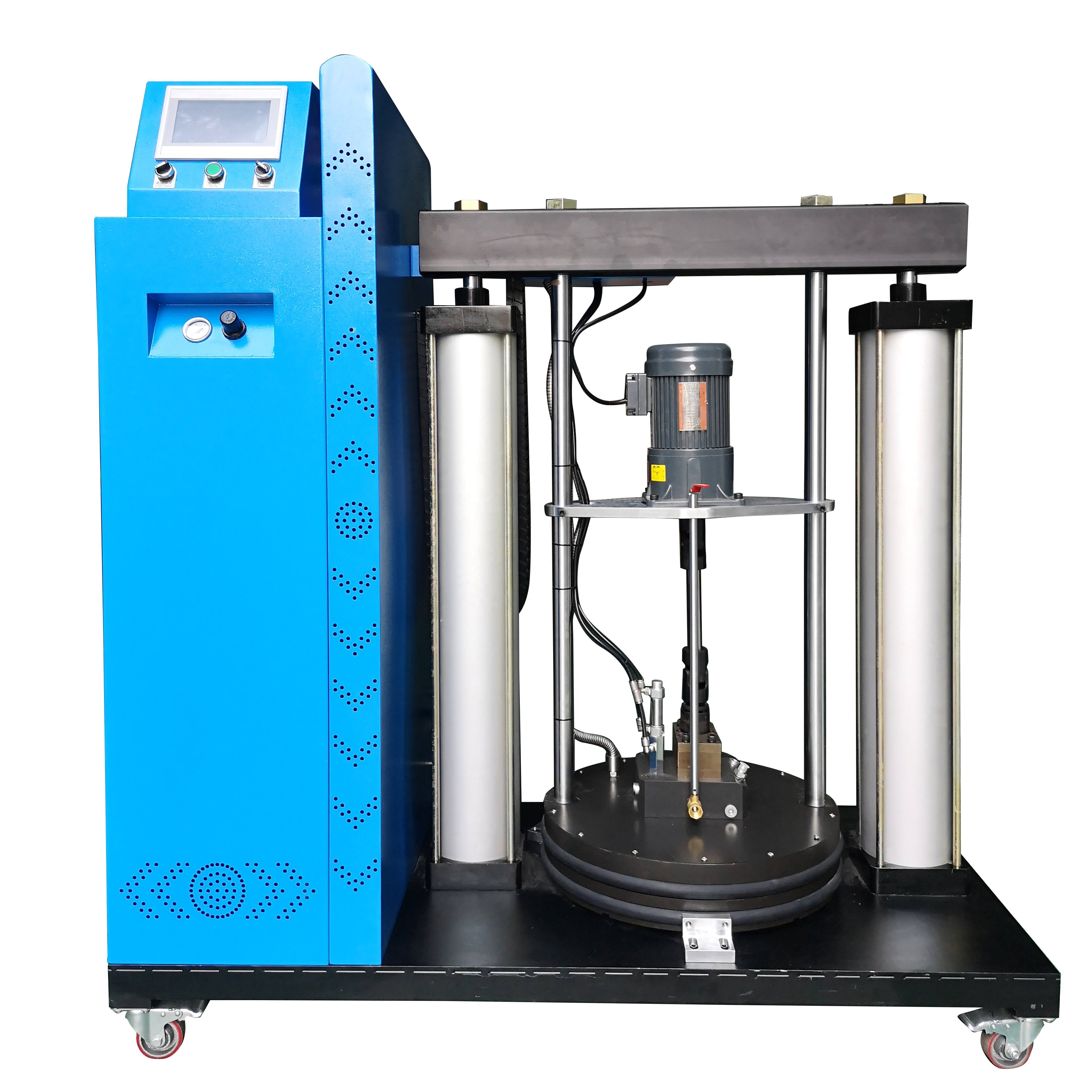

PUR 320KG 55 Gallon Melting Machine

PUR 320KG / 55-Gallon Hot Melt Gluing Machine

US$35,000–45,000 / set
Get Quote

Compatible with Major Nozzle Brands

Liujiang PUR machines work seamlessly with leading nozzle brands, reducing your retrofit costs.

Nordson
Robatech
Meler
Phalbok
ITW Dynatec
Valco Melton

Supports NI120 / NTC / K-type / PT100 sensors

PUR vs Standard Hot Melt

Understand which adhesive system is right for your application.

Feature Standard Hot Melt (EVA) PUR Hot Melt
Bond Strength Medium Very High (5–10×)
Heat Resistance 60–80°C 120°C+
Curing Method Cooling Moisture (air)
Open Time Seconds 1–10 min (adjustable)
Typical Applications Packaging, footwear, general bonding Edge banding, bookbinding, automotive, filter

Need PUR Equipment for Your Production Line?

Share your application details and we'll recommend the right PUR drum size, pump, and hose configuration.

📩 Request a Quote 💬 WhatsApp Us
💬
